Your current location： Home > Product > Ductile Iron Pipe Fittings
Ductile Iron Pipe Fittings
  • Ductile Iron Pipe Fittings
Back to list

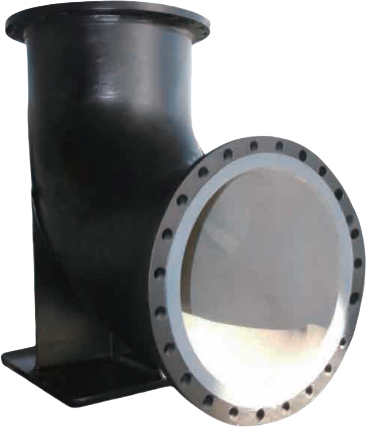

Ductile Iron Pipe Fittings

Dimensions: DN80-2600
Standards for Drinking Water Pipes and Fittings: GB/T 13295, ISO 2531, EN545, etc.
Standards for Sewage Pipes and Fittings: GB/T 26081, ISO 7186, EN 598, etc.
Material: ASTM A536 Grade 65-45-12, GB/T 1348 QT450-10
Gasket Material: EPDM, complies with drinking water hygiene standards GB/T 17219
Executive Standard: GB/T27572, GB/T 28604, GB/T 21873

Product description
For sizes below DN300, high-pressure molding and resin sand core casting are employed, while sizes above DN300 are produced using lost foam vacuum casting. The advanced wire feeding nodularization process, combined with rational and advanced production techniques, ensures excellent surface quality, high dimensional accuracy, and superior overall mechanical performance.
Customer challenge
While traditional steel pipes offer high strength, their corrosion resistance is poor, making them prone to rust. This necessitates frequent maintenance and replacement, resulting in a shorter service life.
Extended Service Life of Pipelines
Traditional welding methods often present challenges during construction. Welding requires significant labor and time, and the quality of the weld is heavily dependent on the skill level of the operator, leading to potential issues with substandard welding quality.
Improved Connection Methods
?
?
Product function
Corrosion Resistance Function
Fluid Transportation Function
?
?
The interior walls are coated with anti-corrosion materials such as cement mortar, while the exterior walls are protected by zinc spraying and additional anti-corrosion coatings (e.g., zinc spraying + asphalt paint coating, epoxy coal tar coating, etc.). These measures provide excellent corrosion resistance, ensuring long-term durability and reliability.
Ductile iron pipes are the primary conveyance pipelines in water supply and drainage systems. They are capable of carrying various fluid media, and their stable performance and reliable connection methods ensure smooth and efficient transportation of fluids within the pipeline.
Value advantage
  • Equal Lifespan
    Equal Lifespan
    All ductile iron pipe fittings and accessories are made from the same material as the main pipes, ensuring an equal lifespan and consistent performance.
  • Excellent Hydraulic Performance
    Excellent Hydraulic Performance
    The smooth interior walls reduce water flow resistance, while the pipe diameter and flow rate are well-matched, ensuring efficient fluid transportation.
  • Strict Quality Control
    Strict Quality Control
    100% hydrostatic pressure testing. 100% anti-corrosion treatment. 100% lining compliant with hygiene standards.
  • High Pressure Resistance
    High Pressure Resistance
    With superior strength, ductile iron pipes can withstand high pressure, ensuring reliable performance in demanding applications.
